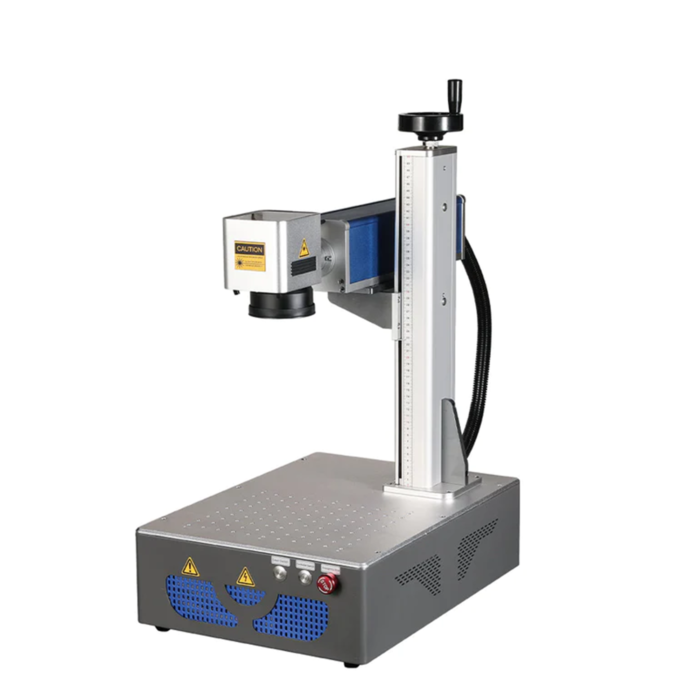

QS-30 EasyMarker 30W Portable Laser Engraver Fiber Marking Machine With 7.9” X 7.9” Working Area

Brief Information:

• Brand: Cloudray
• Product Series: QS Series
• Model: QS-30
• Marking Area(Lens): 4.3” X 4.3” (110*110mm)、7.9” X 7.9” (200×200 mm)
• Net Weight: 29kg
• Package Dimensions: 81*49*44CM
• Package Weight: 33kg
• Fast Global Shipping: DHL / UPS

Machine Features & Benefits

• Simple operation with high safety;
• Easy to focus the variable lens with a high-speed galvanometer (ZBTK);
• Easy focusing with Dual Red Dot Device;
• Marking and engraving on Metals & some Nonmetals
• 2-Year Warranty & Lifetime Tech Support

Model

• Laser Source: 30W Raycus Laser
• Laser Wavelength: 1064 nm
• Laser Frequency: 30-60kHz
• Pulse Duration: 90-130ns
• Max. Engraving Speed: 196.85 ips (5000 mm/s)
• Engraving Depth: ≤0.4mm
• Positioning Accuracy: ±0.1μm
• Galvanometer: High-Speed ZBTK (Only for www.cloudraylaser.com)
• Optional Lens: 70*70/110*110/200*200/300*300
• Lifespan: Around 100,000 hours
• Warranty: 2 Year
• Technical Support: Lifetime
• Control Board: BJJCZ
• Power Supplies: 5V, 15V, 24V
• Voltage: 110V/220V
• Software: EZCAD2 Lite for Windows OS versions XP, Vista, 7, 8,10 & 11
• Dual Red Dot Device: Easy focusing
• F-Theta Field Lens: F290 working area 200 x 200 mm Focal Length 310mm
• Certifications: FDA Compliant & CE Certification

Applicable Materials:

Metals: Aluminum, Gold, Silver, Copper, Stainless Steel, Brass, Titanium, Tungsten,
Nonmetals: Colored Acrylic, Hard Plastics, Brick, Granite, Marble, Tile, Nylon, Light Button, ABS, PVC, PES, Ceramic, Rock, Stone, Marble, Artificial Leather, etc.
*Some PVC-based acrylics can create toxic fumes when lasered.
Contact us with questions on specific materials not listed, we can process a sample for confirmation.

Applicable Industry:

Workshop,  Hardware industry, Gift Shop, Print Shop, 3C Digital, Souvenir Shop, Jewelry Store, Pet Store, Medical Use, Small Business, Esty Seller, Munitioner, Education, Office， DIY, Kickstarter Entrepreneur.

Application Cases:

Engraving on jewelry, guns, firearms, blades, axes, knives, coins, stamps, forks, spoons, cutlery, flasks, wallets, tumblers, mugs, cups, dog tags, slate coasters, etc.
Laser mark logo, text, barcode, numbers, serial numbers, image, photo on metal & plastic parts and tools, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.

Packing List

1. Fiber Laser Machine Machine x1
2. U Disk (Manuals and Software) x1
3. Power Cable x1
4. Allen Wrench x1
5. Screwdriver x2
6. Positioning Bar (With Screws) x2 (M6 4Pcs)
7. USB Cable x1
8. Color Aluminum Sheet x1
9. Foot Switch x1
