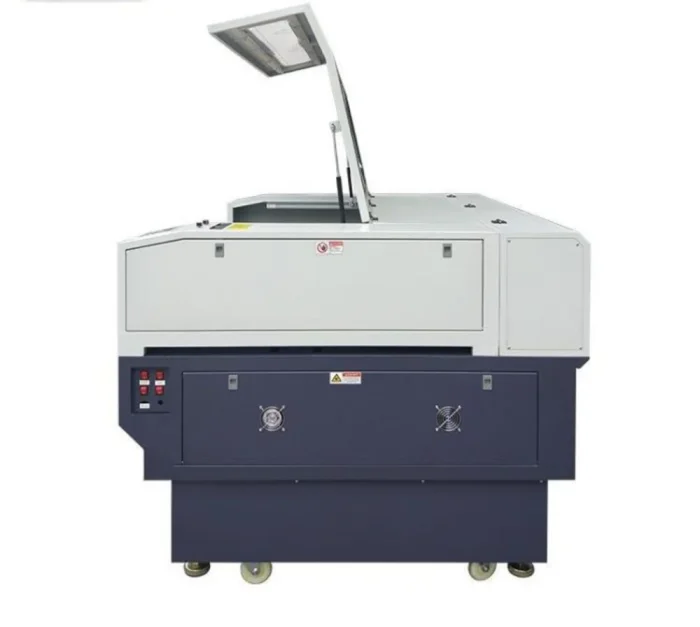

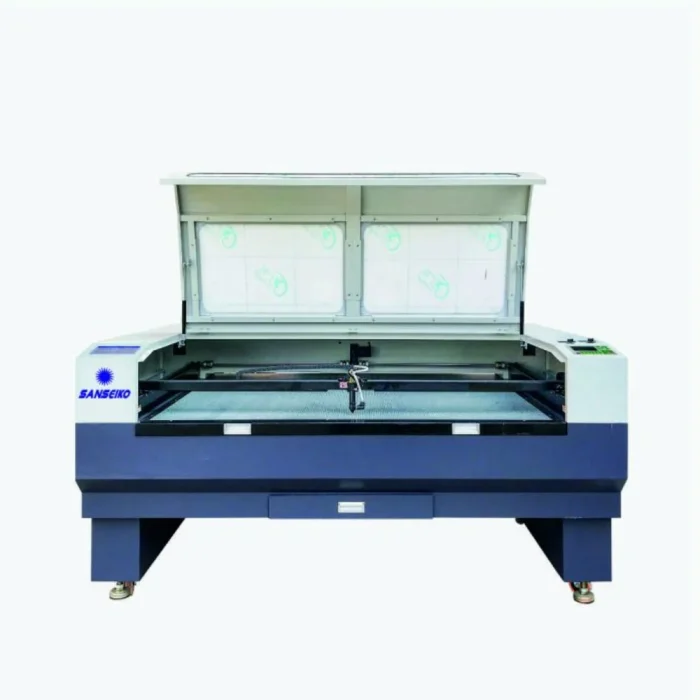

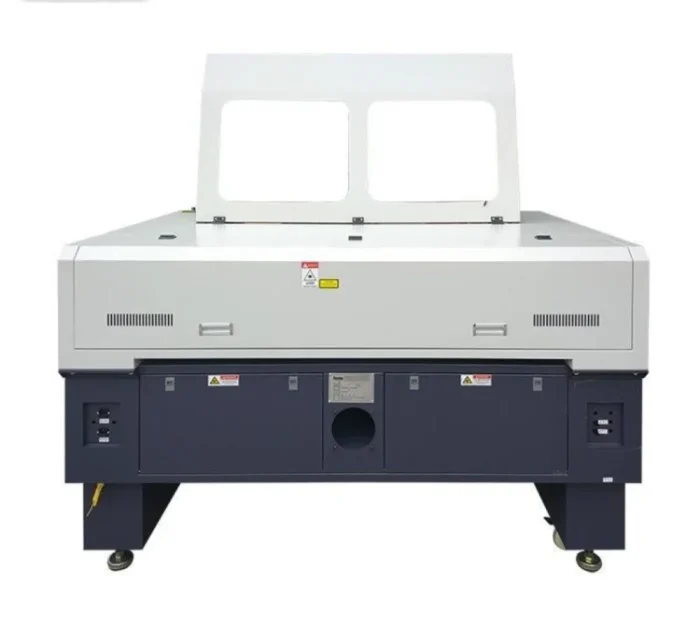

CR Series 55W-100W CO2 Laser Cutting Machine With Industrial Chiller

Brief Information

• Suitable for business or personal use
• Working Dimension: 23.6″X15.8″/27.6″X19.7″/35.4″X23.6″
• Package Dimension: CR6040-A (55*39*34“)/ CR7050-A(59*43*34”)/ CR7050-C(70*43*34“)/ CR9060-B(67*47*34”)
• 8” Standard Z-depth and 10” Max Z-depth

Features & Benefits

High Resolution and High Accuracy

Resolution up to 4500 dpi;
50.8mm Focal distance provides high resolution and etching of extremely small fonts;
The air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.

55-100W CO2 LASER POWER

Select between 55 and 100 watts of cutting power with a life time performance of up to 10,000 hours.
We thoroughly test each tube during the assembly process to ensure a quality beam profile and maximum power.
The CR-Series and W-Series is engineered to handle demanding production environments and long workdays while delivering consistent results for every job.
By constantly refining and improving the beams power density, Cloudray selected laser tube generates a powerful cutting beam with exceptional engraving resolution.

Class2 Guide Laser (Red Diode) for Improved Accuracy and Alignment

Infrared laser beams are invisible to the naked eye. The included inline beam combiner precisely illuminates the path of the laser, eliminating potential hazards from the laser and making it easier to adjust the laser path.

Lightweight Laser Head, Faster Engraving Speed

Enclosed Aeronautical Aluminum Rail

Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.

Ruida Digital Controller

Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.

Pass-through For Greater Flexibility

With the pass-through, long and bulky workpieces that are larger than the machine can be processed quickly and easily.

Honey Comb & Knife Blade Platforms Offers Flexible Material

Both the Knife Blade and Honeycomb platforms are included for flexibility whether cutting or engraving material.

Lighting

The light belt under the lid gives point illumination for precise

CR Series Specs

Software

• Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit
• MacOS (Version 10.11 and higher) ONLY with LightBurn software
• Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD
• Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others

Laser System

• Custom CO2 glass laser tube capable of continuous operation at 10,640 nm;
• Easy-to-adjust Optical path;
• 20mm Focal lens diameter & 50.8mm Focal distance;
• 25mm Mirror diameter;
• Recommended engraving speed: 100 – 500mm/s
• Recommended cutting speed: 1 – 30mm/s (actual speed depends on the thickness of the material)

Material Capability

• Can safely engrave or cut any laser-compatible material
• wood, glass, acrylic, fabric, leather, paper, cardboard, rubber
• Contact us with questions on specific materials not listed. If necessary, we can test it for you

Additional Information

Mechanics

• Linear System — Custom extruded aluminum linear rails
• Motion — Equipped with stepper X, Y, Z axis, plus mechanical limit switches
• Cooling — easy-to-setup water pump and hoses
• Air Assist — Internal air assist with no external compress or required
• Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors
• Standard 110V, AC power connection
• 4-pin port connection for rotary axis devices

Temperature

• Recommended Operating Temperature: 60-104 °F (16C-40C)
• Attention: the CO2 water temperature must be maintained at 60-70°F (16-21°C)

Warranty

• 2-year warranty on laser machine and parts (except lens&laser tube)
• Len: 3 months/ CR Laser Tube: 9 months/ RECI Laser Tube: 18 months

Certifications

• FDA Approved
• CE Certified

Package Lists

• Laser Engraver Machine *1
• S&A Chiller *1
• Air Exhaust Fan *1
• Air Compressor *1
• USB Driver With Software *1
• USB Type-A to Type-A Cable *1
• Power Cord *2
• Ethernet to Ethernet Cable *1
• Hex Wrenches *10
• Screwdriver *1
