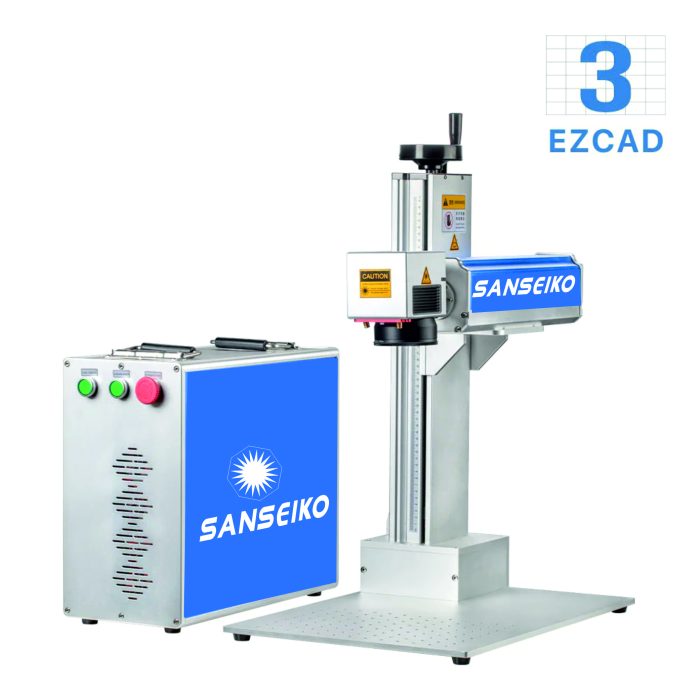

Brief Information:
- Brand: Sanseiko
- Product Series: AR Series
- Model: AR-100
- Marking Area(Lens): 4.3” X 4.3” (110*110mm)
- Net Weight: 41kg
- Package Dimensions: 38*21.3*22 in (96*54*56 CM)
- Package Weight: 56kg
- Fast Global Shipping: DHL / UPS
Machine Features & Benefits
- Simple operation with high safety;
- Easy to focus the variable lens with a high-speed galvanometer (ZBTK);
- Easy focusing with Dual Red Dot Device;
- Marking and engraving on Metals & some Nonmetals
- With 2.5D Laser Engraving
- Electrical Lifting Column
- Anodized Aluminum Black Marking, Titanium & Stainless Steel Color Marking (JPT M7)
- 2-Year Warranty & Lifetime Tech Support

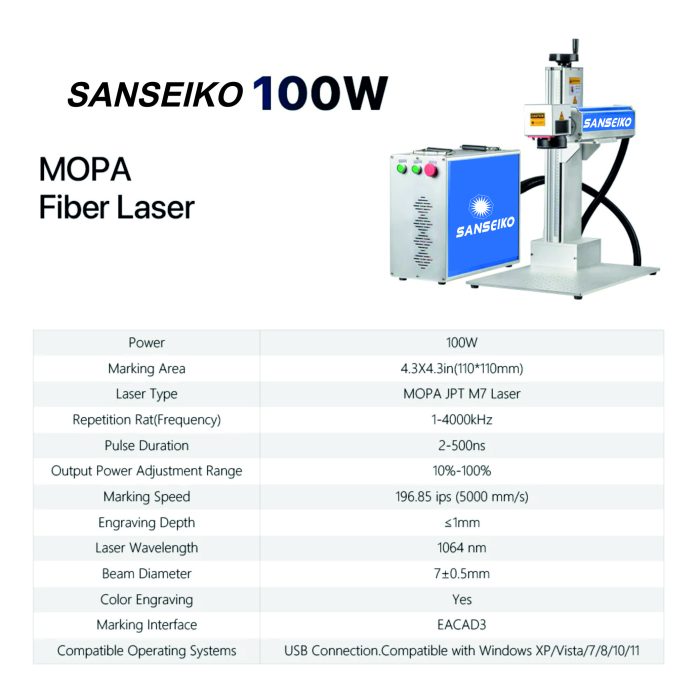

Model
- Laser Source: 100W JPT M7 Laser
- Laser Wavelength: 1064 nm
- Laser Frequency: 1-4000 kHz
- Pulse Duration: 2-500ns
- Max. Engraving Speed: 196.85 ips (5000 mm/s)
- Engraving Depth: ≤1mm
- Positioning Accuracy: ±0.1μm
- Galvanometer: High-Speed ZBTK (Only for www.cloudraylaser.com)
- Optional Lens: 70*70/110*110/200*200/300*300
- Lifespan: Around 100,000 hours
- Warranty: 2 Year
- Technical Support: Lifetime
- Control Board: BJJCZ
- Power Supplies: 5V, 15V, 24V
- Voltage: 110V/220V
- Software: EZCAD3 for Windows OS versions XP, Vista, 7, 8,10 & 11
- Color Engraving: Yes
- Dual Red Dot Device: Easy focusing
- F-Theta Field Lens: F160 working area 110 x 110 mm Focal Length 163 mm & F290 working area 200 x 200 mm Focal Length 310mm
- Certifications: FDA Compliant & CE Certification
JPT 100W M7 LASER Parameter
| Unit | JPT 100W M7 LASER Parameter | |
| Product Model | YDFLP-E-100-M7-M-R | |
| M2 | <1.6 | |
| Delivery Cable Length | m | |
| Nominal Average Output Power | W | >100 |
| Maximum Pulse Energy | mJ | 1.5 |
| Pulse Repetition Rate Range | kHz | 1 ~ 4000 |
| Pulse Duration | ns | 2~500 |
| Output Power Stability | % | <5 |
| Cooling Method | Air Cooled | |
| Supply DC Voltage (VDC) | V | 48 |
| Maximum Power Consumption | W | <450 |
| Environmental Supply Current | A | >9 |
| Central Emission Wavelength | nm | 1064 |
| Emission Bandwidth@3dB | nm | <15 |
| Polarization Orientation | Random | |
| Anti-high Reflection | Yes | |
| Output Beam Diameter | mm | 7±0.5 |
| Output Power Tuning Range | % | 0 ~ 100 |
| Operation Temperature | ℃ | 0 ~ 40 |
| Storage Temperature | ℃ | -10 ~ 60 |
| N.W | KG | 13.2 |
| Size(L×W×H) | mm | 338 × 280 × 112 |
1. EZCAD3 adopts a 64-bit software kernel. The file processing speed is faster, and the processing file of GB level can be opened.
2. EZCAD3 supports 2.5D deep marking and relief marking functions.
3. EZCAD3 can quickly generate arrays of different processing parameters through the parameter assistant to find the best processing parameters.
4. More mark filling methods: 8 types of EZCAD3 & 5 types of EZCAD2.
M7 Series： It has multiple optional pulse widths between the range of 2-500ns and power range from 20W-350W. Therefore, the M7 Series has stronger adaptability for different materials and different effect requirements, and is able to cover application scenarios such as marking, welding, cutting, surface treatment, drilling and etc.
Applicable Materials:
Metals: Aluminum, Gold, Silver, Copper, Stainless Steel, Brass, Titanium, Tungsten,
Nonmetals: Colored Acrylic, Hard Plastics, Brick, Granite, Marble, Tile, Nylon, Light Button, ABS, PVC, PES, Ceramic, Rock, Stone, Marble, Artificial Leather, etc.
*Some PVC-based acrylics can create toxic fumes when lasered.
Contact us with questions on specific materials not listed, we can process a sample for confirmation.
Applicable Industry:
Workshop, Hardware industry, Gift Shop, Print Shop, 3C Digital, Souvenir Shop, Jewelry Store, Pet Store, Medical Use, Small Business, Esty Seller, Munitioner, Education, Office， DIY, Kickstarter Entrepreneur.
Application Cases:
Engraving on jewelry, guns, firearms, blades, axes, knives, coins, stamps, forks, spoons, cutlery, flasks, wallets, tumblers, mugs, cups, dog tags, slate coasters, etc.
Anodized aluminum black marking, titanium & stainless steel color marking, laser mark logo, text, barcode, numbers, serial numbers, image, photo on metal & plastic parts and tools, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
